0751, 0752, 0753
EPDM Membrane With Butyl

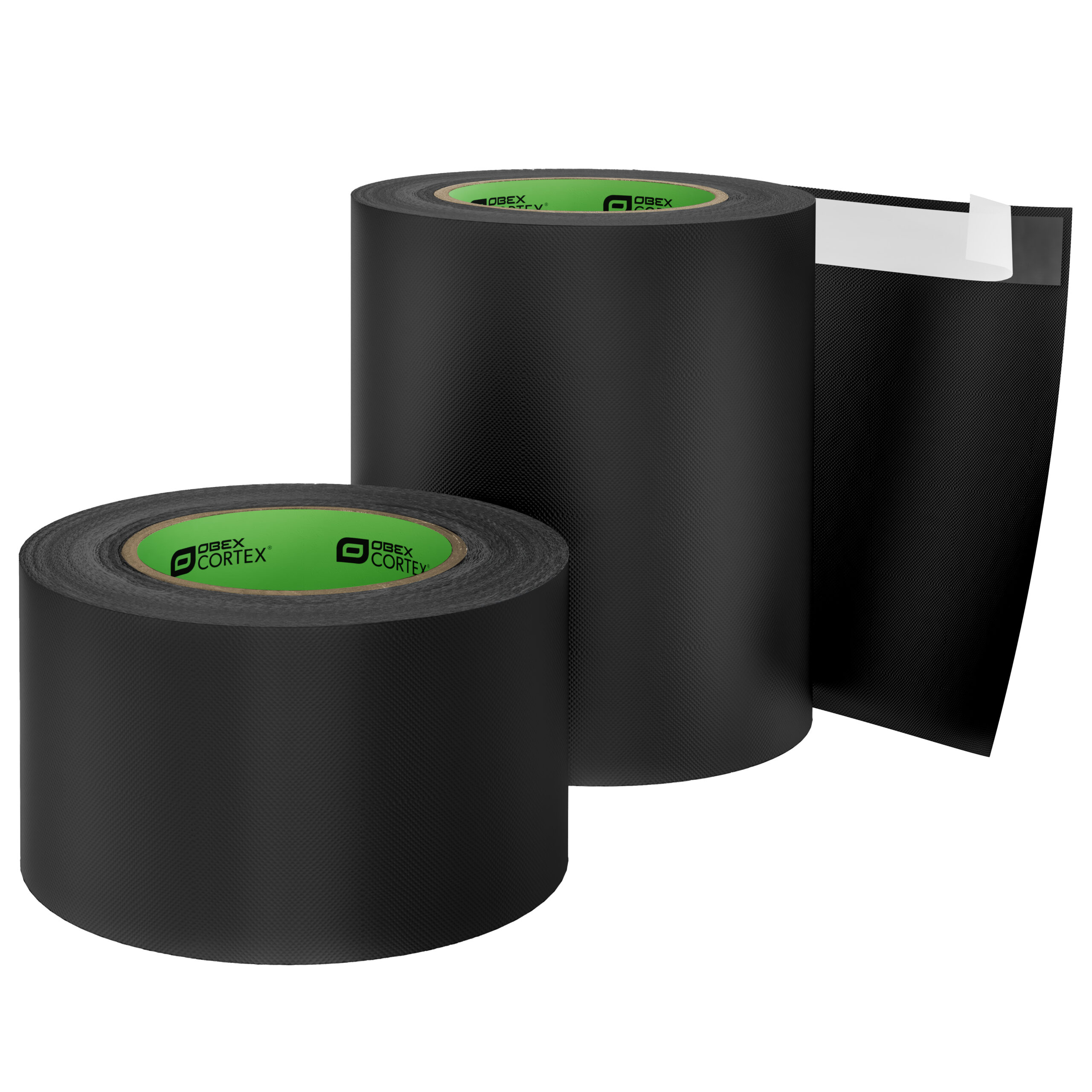

OBEX CORTEX EPDM Membrane With Butyl is a fully flexible membrane used to create weather and airtight seals around openings such as windows, doors and curtain walling.
The membrane is manufactured with pre-attached butyl strips which enable the membrane to be bonded directly onto the window frame.
The EPDM can be supplied with a single butyl strip to one edge, or one strip to each edge on the same side, or one strip to each edge on opposite sides.
Typical Uses
- Creating a weather and airtight seal around openings.
Product Specs
Widths
50mm - 500mm
Length
20m
Thicknesses
0.75mm (Other thicknesses available on request)
Product Order Codes
| Product Codes | Product Description | Width | Thickness | No. of Butyl Strips | Length | Box Quantity |
|---|---|---|---|---|---|---|
| OBEX CORTEX 0751 EPDM Membrane With Butyl Strip | ||||||
| 10.0500.201 | OBEX CORTEX 0500 EPDM Membrane Inc 1 Butyl Strip | 150mm | 0.5mm | 1 | 20m | 1 |
| 10.0500.202 | OBEX CORTEX 0500 EPDM Membrane Inc 1 Butyl Strip | 200mm | 0.5mm | 1 | 20m | 1 |
| 10.0500.203 | OBEX CORTEX 0500 EPDM Membrane Inc 1 Butyl Strip | 250mm | 0.5mm | 1 | 20m | 1 |
| 10.0500.204 | OBEX CORTEX 0500 EPDM Membrane Inc 1 Butyl Strip | 300mm | 0.5mm | 1 | 20m | 1 |
| 10.0600.200 | OBEX CORTEX 0600 EPDM Membrane Inc 1 Butyl Strip | 100mm | 0.6mm | 1 | 20m | 1 |
| 10.0600.201 | OBEX CORTEX 0600 EPDM Membrane Inc 1 Butyl Strip | 150mm | 0.6mm | 1 | 20m | 1 |
| 10.0600.202 | OBEX CORTEX 0600 EPDM Membrane Inc 1 Butyl Strip | 200mm | 0.6mm | 1 | 20m | 1 |
| 10.0600.203 | OBEX CORTEX 0600 EPDM Membrane Inc 1 Butyl Strip | 250mm | 0.6mm | 1 | 20m | 1 |
| 10.0600.204 | OBEX CORTEX 0600 EPDM Membrane Inc 1 Butyl Strip | 300mm | 0.6mm | 1 | 20m | 1 |
| 10.0600.206 | OBEX CORTEX 0600 EPDM Membrane Inc 1 Butyl Strip | 350mm | 0.6mm | 1 | 20m | 1 |
| 10.0600.207 | OBEX CORTEX 0600 EPDM Membrane Inc 1 Butyl Strip | 400mm | 0.6mm | 1 | 20m | 1 |
| 10.0600.208 | OBEX CORTEX 0600 EPDM Membrane Inc 1 Butyl Strip | 450mm | 0.6mm | 1 | 20m | 1 |
| 10.0750.200 | OBEX CORTEX 0750 EPDM Membrane Inc 1 Butyl Strip | 50mm | 0.75mm | 1 | 20m | 1 |
| 10.0750.201 | OBEX CORTEX 0750 EPDM Membrane Inc 1 Butyl Strip | 100mm | 0.75mm | 1 | 20m | 1 |
| 10.0750.203 | OBEX CORTEX 0750 EPDM Membrane Inc 1 Butyl Strip | 150mm | 0.75mm | 1 | 20m | 1 |
| 10.0750.204 | OBEX CORTEX 0750 EPDM Membrane Inc 1 Butyl Strip | 200mm | 0.75mm | 1 | 20m | 1 |
| 10.0750.205 | OBEX CORTEX 0750 EPDM Membrane Inc 1 Butyl Strip | 250mm | 0.75mm | 1 | 20m | 1 |
| 10.0750.206 | OBEX CORTEX 0750 EPDM Membrane Inc 1 Butyl Strip | 300mm | 0.75mm | 1 | 20m | 1 |
| 10.0750.207 | OBEX CORTEX 0750 EPDM Membrane Inc 1 Butyl Strip | 350mm | 0.75mm | 1 | 20m | 1 |
| 10.0750.208 | OBEX CORTEX 0750 EPDM Membrane Inc 1 Butyl Strip | 400mm | 0.75mm | 1 | 20m | 1 |
| 10.0750.209 | OBEX CORTEX 0750 EPDM Membrane Inc 1 Butyl Strip | 450mm | 0.75mm | 1 | 20m | 1 |
| 10.0750.210 | OBEX CORTEX 0750 EPDM Membrane Inc 1 Butyl Strip | 500mm | 0.75mm | 1 | 20m | 1 |
| 10.0750.211 | OBEX CORTEX 0750 EPDM Membrane Inc 1 Butyl Strip | 600mm | 0.75mm | 1 | 20m | 1 |
| 10.0750.212 | OBEX CORTEX 0750 EPDM Membrane Inc 1 Butyl Strip | 650mm | 0.75mm | 1 | 20m | 1 |
| 10.1000.200 | OBEX CORTEX 1000 EPDM Membrane Inc 1 Butyl Strip | 100mm | 1mm | 1 | 20m | 1 |
| 10.1000.202 | OBEX CORTEX 1000 EPDM Membrane Inc 1 Butyl Strip | 250mm | 1mm | 1 | 20m | 1 |
| OBEX CORTEX 0752 EPDM Membrane With 2 Butyl Strips Same Sides | ||||||
| 10.0600.211 | OBEX CORTEX 0600 EPDM Membrane Inc 2 Butyl Strips S/S | 150mm | 0.6mm | 2 | 20m | 1 |
| 10.0750.214 | OBEX CORTEX 0750 EPDM Membrane Inc 2 Butyl Strips S/S | 100mm | 0.75mm | 2 | 20m | 1 |
| 10.0750.215 | OBEX CORTEX 0750 EPDM Membrane Inc 2 Butyl Strips S/S | 150mm | 0.75mm | 2 | 20m | 1 |
| 10.0750.216 | OBEX CORTEX 0750 EPDM Membrane Inc 2 Butyl Strips S/S | 200mm | 0.75mm | 2 | 20m | |
| 10.0750.217 | OBEX CORTEX 0750 EPDM Membrane Inc 2 Butyl Strips S/S | 250mm | 0.75mm | 2 | 20m | 1 |
| 10.0750.218 | OBEX CORTEX 0750 EPDM Membrane Inc 2 Butyl Strips S/S | 300mm | 0.75mm | 2 | 20m | 1 |
| 10.0750.219 | OBEX CORTEX 0750 EPDM Membrane Inc 2 Butyl Strips S/S | 400mm | 0.75mm | 2 | 20m | 1 |
| 10.0750.221 | OBEX CORTEX 0750 EPDM Membrane Inc 2 Butyl Strips S/S | 500mm | 0.75mm | 2 | 20m | 1 |
| OBEX CORTEX 0753 EPDM Membrane With 2 Butyl Strip Opposite Sides | ||||||
| 10.0600.212 | OBEX CORTEX 0600 EPDM Membrane Inc 2 Butyl Strips O/S | 200mm | 0.6mm | 2 | 20m | 1 |
| 10.0600.227 | OBEX CORTEX 0750 EPDM Membrane Inc 2 Butyl Strips O/S | 200mm | 0.75mm | 2 | 20m | 1 |
| 10.0600.228 | OBEX CORTEX 0750 EPDM Membrane Inc 2 Butyl Strips O/S | 250mm | 0.75mm | 2 | 20m | 1 |
| 10.0600.229 | OBEX CORTEX 0750 EPDM Membrane Inc 2 Butyl Strips O/S | 300mm | 0.75mm | 2 | 20m | 1 |
| 10.0600.230 | OBEX CORTEX 0750 EPDM Membrane Inc 2 Butyl Strips O/S | 350mm | 0.75mm | 2 | 20m | 1 |
| 10.0600.231 | OBEX CORTEX 0750 EPDM Membrane Inc 2 Butyl Strips O/S | 400mm | 0.75mm | 2 | 20m | 1 |
| 10.0600.233 | OBEX CORTEX 0750 EPDM Membrane Inc 2 Butyl Strips O/S | 500mm | 0.75mm | 2 | 20m | 1 |
